Doubles Squash Court Dimensions: Size and Layout Guide
Doubles Squash Court Dimensions: Size, Layout, and Planning Guide
If you are searching for doubles squash court dimensions, the first thing to confirm is which doubles format you mean. A North American hardball doubles court is 45 ft long by 25 ft wide, with a recommended minimum ceiling height of 24 ft. The World Squash Federation (WSF) international doubles court is 9.75 m long by 7.62 m wide, with an 8.42 m competition-width option for certain recognized events.
Those are different court standards. Use the standard that matches your players, ball, governing body, and event program before approving drawings.

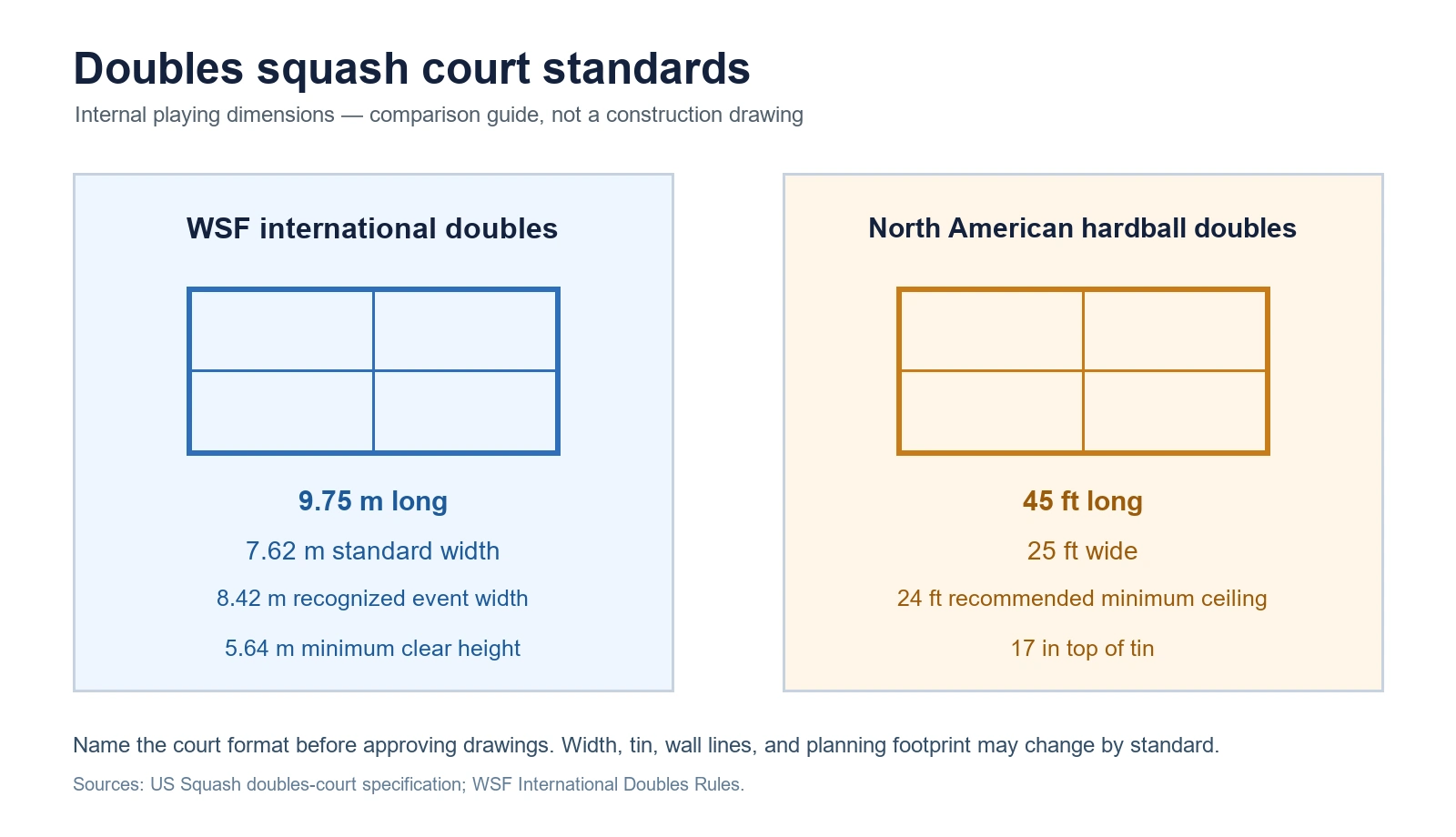

Doubles squash court dimensions at a glance
The figures below refer to the playing area between finished wall surfaces unless a source states otherwise. They are not the total building footprint.
| Court format | Length | Width | Clear-height reference | Tin reference |
|---|---|---|---|---|
| WSF international doubles | 9,750 mm (9.75 m) | 7,620 mm (7.62 m) | 5,640 mm minimum | 480 mm top of tin |
| WSF competition-width doubles | 9,750 mm (9.75 m) | 8,420 mm (8.42 m) | 5,640 mm minimum | 330 mm top of tin for specified recognized events |
| North American hardball doubles | 45 ft (13.72 m) | 25 ft (7.62 m) | 24 ft recommended minimum | 17 in (about 430 mm) |
The international measurements come from the WSF International Doubles Rules. The hardball figures and wall references come from US Squash’s doubles-court specification. Always identify the format beside the dimensions: “doubles court” on its own is not precise enough for a construction brief.
International doubles squash court dimensions
The WSF international doubles court is 9,750 mm long and 7,620 mm wide between the playing surfaces. For WSF-recognized World, Regional, and Commonwealth events, the rules document notes a wider 8,420 mm configuration and a lower 330 mm tin.
Key WSF international doubles measurements include:
- Length between playing surfaces: 9,750 mm
- Standard width between playing surfaces: 7,620 mm
- Recognized competition width: 8,420 mm, where the event standard calls for it
- Minimum clear height: 5,640 mm
- Front-wall line: 4,570 mm
- Back-wall line: 2,130 mm
- Service line: 1,780 mm
- Standard top of tin: 480 mm
- Competition-width tin: 330 mm, for the specified recognized events
- Short-line reference: 4,260 mm from the back wall
- Service boxes: 1,600 mm
- Line width: 50 mm
These are court-specification measurements, not a substitute for an approved construction drawing. The WSF document also describes dimensions as being checked between playing surfaces and, for the relevant measurements, at a defined height above the floor. Your architect, contractor, or court supplier should use the governing specification and the project drawings together.
International doubles court markings and layout
The layout is easier to understand when the lines are treated as a system rather than as isolated numbers:
- The front wall carries the front-wall line and service line.
- The side-wall lines connect the front and back wall references.
- The short line divides the service and rally areas on the floor.
- The service boxes are square and measure 1,600 mm under the WSF specification.
- The tin sits at the bottom of the front wall; its height depends on the selected standard.
For a new facility, the drawing should identify the finished playing surfaces, line edges, tin height, door arrangement, wall system, and clear height. LDK’s squash court wall material guide can help your team compare wall choices before the enclosure is finalized. This helps prevent a common design error: using a measurement from one doubles format in a drawing intended for another.
North American hardball doubles court dimensions
North American hardball doubles uses a substantially longer court than international doubles. According to US Squash, the court is:
- 45 ft (13.72 m) long
- 25 ft (7.62 m) wide
- 24 ft (about 7.32 m) recommended minimum ceiling height
US Squash also lists these wall and marking references:
| Feature | US Squash reference |
|---|---|
| Front-wall line | 20 ft from the floor to the top line |
| Service line | 8 ft 2 in from the floor |
| Back-wall line | 7 ft from the floor to the top line |
| Tin | 17 in from the floor to the top of the tin |
| Return box | 15 ft × 12 ft 6 in |
| Service box | 4 ft 6 in arc |
| Line width | 1 in, red |
For a US-led search, this is the hardball figure many readers may be looking for. It should not be merged with the international 9.75 m court simply because both formats use the word doubles.
Doubles court vs singles court: what changes?
A standard singles court and a purpose-built doubles court are not interchangeable. The international doubles court is wider, while North American hardball doubles is both wider and longer. The wall lines, tin reference, service layout, and playing dynamics can also differ.
Four players can sometimes play a social game on a standard singles court, but that does not make the court a dedicated doubles court. A singles-court session may require different movement expectations and safety practices, especially when four players, rackets, and a fast ball share a confined space. If a facility is being designed for regular doubles programming or competition, specify the intended doubles standard instead of relying on an informal four-player arrangement.
The same distinction matters when comparing squash with racquetball. A racquetball court is not automatically a compliant squash doubles court. Confirm the sport, rule set, court markings, ball, and governing specification before reusing an existing enclosure.
How to plan space for a doubles squash court
The published court dimensions describe the playing box. A real project needs additional decisions around that box. Before construction, make sure the project brief covers the following items:
1. Select the governing standard
State whether the project is for WSF international doubles, a specified competition-width event, North American hardball doubles, or another local format. Put the choice on the cover sheet of the drawing set.
2. Separate playing dimensions from total footprint
Allow for wall build-up, structural framing, access routes, doors, viewing areas, plant, lighting equipment, ventilation, and maintenance access outside the internal playing dimensions. The final footprint depends on the chosen enclosure and the building, so it cannot be inferred from 9.75 m × 7.62 m or 45 ft × 25 ft alone.
3. Confirm the finished surfaces
Dimensions measured between finished wall surfaces can change when a wall system, glass section, mesh enclosure, framing system, or protective finish is selected. Coordinate the floor build-up and final playing surface with the wall and line layout before fabrication.
4. Plan for visibility, lighting, and maintenance
If the facility is intended for club programming or spectator-friendly events, review sightlines, glare, lighting positions, ventilation, cleaning access, and replacement access as part of the court layout—not as afterthoughts after the enclosure is ordered.
5. Keep project drawings authoritative
Use the governing standard for the sport, then use approved project drawings for the actual build. A web article can explain the dimensions, but it cannot replace site measurements, structural coordination, local code review, or the final specification package.
For LDK projects, the default doubles-court specification is the international doubles standard. If your site, program, or competition requirements call for a different format, LDK can develop a project-specific specification around the available space and client requirements, subject to confirmation in the approved drawings.
Which doubles court standard should you build?
Use this quick decision guide:
- Planning a North American hardball doubles program? Start with the US Squash 45 ft × 25 ft court and its associated wall references.
- Planning international doubles? Start with the WSF 9.75 m × 7.62 m court.
- Planning a recognized international event? Confirm whether the 8.42 m competition width and 330 mm tin apply to the event.
- Planning a convertible facility? Ask whether the wall system can produce the required finished playing dimensions for each intended format. Do not assume that a movable or removable wall is compliant without checking the final drawing.
- Converting an existing court? Measure the finished enclosure, clear height, wall lines, tin, floor, and access conditions before selecting a conversion path.
If the facility will serve more than one market or competition type, record the primary standard and the permitted alternatives separately. This makes procurement, inspection, and future maintenance much clearer.
FAQ: doubles squash court size and measurements
How big is a doubles squash court?
It depends on the format. A North American hardball doubles court is 45 ft × 25 ft. A WSF international doubles court is 9.75 m × 7.62 m, with an 8.42 m width used for specified recognized competitions.
What is the difference between a hardball and international doubles court?
The North American hardball court is longer: 45 ft compared with the international court’s 9.75 m. The standards also use different wall, tin, and layout references, so the two should be specified separately in a project brief.
How wide is an international doubles squash court?
The standard width is 7,620 mm, or 7.62 m. The WSF rules document notes an 8,420 mm competition-width configuration for certain recognized events.
How high should the ceiling be over a doubles squash court?
The WSF international doubles specification lists a 5,640 mm minimum clear height. US Squash recommends a minimum ceiling height of 24 ft for its North American doubles court. Confirm the applicable standard before design approval.
Can four players play on a standard singles squash court?
People do play social doubles on singles courts, but that is not the same as building a dedicated doubles court. The available space, markings, movement, and safety conditions are different. For regular programming or competition, use the correct doubles specification.
Are doubles squash court dimensions measured inside or outside the walls?
The WSF figures are playing-surface dimensions measured between finished wall surfaces. The overall building footprint must also include wall construction, framing, access, services, and circulation.
Is the 8.42 m international doubles width mandatory?
The 8,420 mm width is an approved competition-width configuration for specified WSF-recognized events; it is not a universal replacement for the standard 7,620 mm width. Event regulations should control the final design.
What should I confirm before ordering a doubles squash court?
Confirm the court format, governing body, internal playing dimensions, clear height, wall lines, tin, service layout, floor and wall finishes, access, lighting, services, and the total available footprint. Then obtain project-specific drawings before fabrication or installation.
Doubles squash court planning checklist
Before requesting a quotation or approving a layout, check that:
- [ ] The project names the exact doubles format.
- [ ] Length and width are labeled as internal playing-surface dimensions.
- [ ] The applicable clear-height requirement is recorded.
- [ ] Wall lines, service layout, short line, tin, and line width match the selected standard.
- [ ] The building footprint includes structure, access, services, viewing, and maintenance space.
- [ ] The wall, glass, mesh, framing, floor, lighting, and ventilation choices are coordinated.
- [ ] Local building, fire, accessibility, and safety requirements are reviewed by the responsible professionals.
- [ ] The final drawings identify what will be inspected and measured before handover.
For a new facility or a conversion, the safest next step is a project-specific layout review tied to the chosen doubles standard. If you are comparing an outdoor build, LDK’s outdoor squash court enclosure with glass walls and mesh roof is one enclosure context to review against the selected dimensions. Send the chosen standard, available site dimensions, clear height, and intended use with a quotation request so the final specification can be confirmed in approved drawings before fabrication.
Conclusion
The right doubles squash court dimensions depend on the format: WSF international doubles is 9.75 m × 7.62 m, while North American hardball doubles is 45 ft × 25 ft. Name the standard first, then align the playing surfaces, clear height, enclosure, and total site footprint with approved project drawings.
Sources
This guide is for standards-aware planning. It is not a construction drawing, local code interpretation, or certification statement. Governing-body rules and approved project documentation should control the final build.
